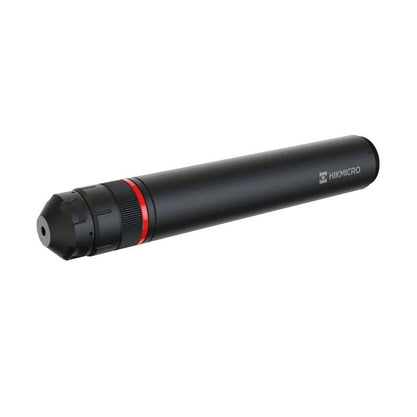

Furnace Cameras 384x288, 3 mm, 100°×80.3°, 50fps, 0~2000℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, Power in 10-30 VDC

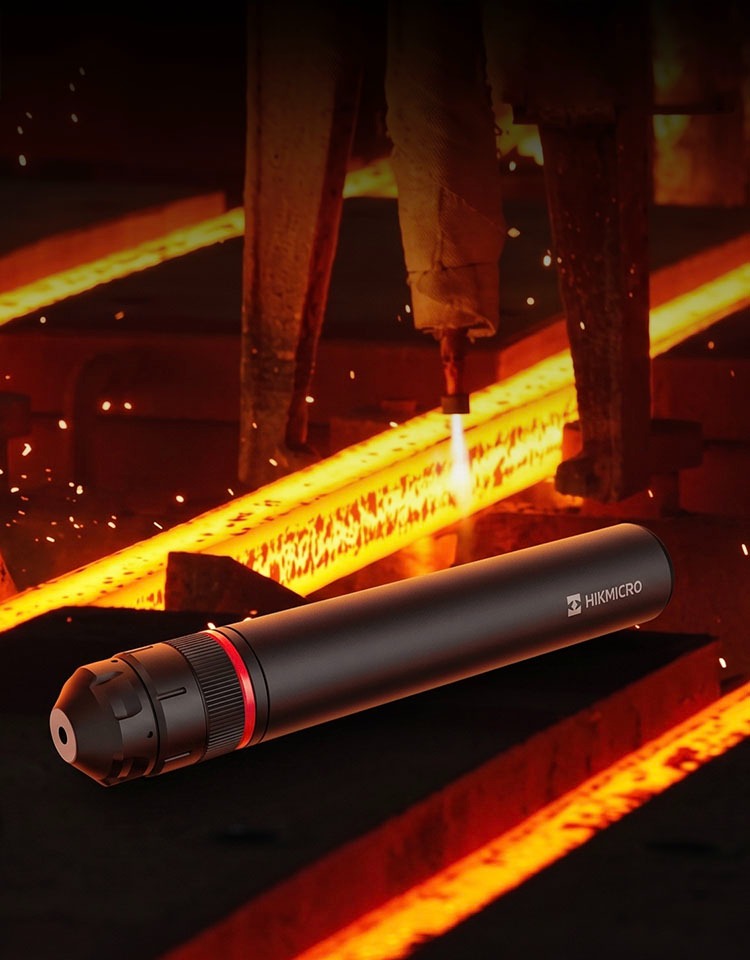

Clear thermal imaging and temperature measurement up to 2000°C for furnace monitoring
Specification
| Product Model
* Check the product for comparison
|
|
|
|---|---|---|
| Thermal Module | ||
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays | Vanadium Oxide Uncooled Focal Plane Arrays |
| Pixel Pitch | 12 μm | 12 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1.0) | ≤ 35 mK (@25° C,F# = 1.0) |
| IFOV | 4 mrad | 3 mrad |
| Field of View | 100° × 80.3° (H × V) | 100° × 80.3° (H × V) |
| Min. Focusing Distance | 0.5 m | 0.5 m |
| Aperture | F2.5 | F2.5 |
| Focal Length | 3 mm | 4 mm |
| Resolution | 384 × 288 | 640 × 512 |
| Measurement and Analysis | ||
| Object Temperature Range | 0°C to 800°C (32°F to 1472°F), 300 °C to 2000 °C (5722°F to 3632 °F) | 0°C to 800°C (32°F to 1472°F), 300 °C to 2000 °C (5722°F to 3632 °F) |
| Measurement Presets | Hot spot, cold spot in real time | Hot spot, cold spot in real time |
| Point | 10 User Presets | 10 User Presets |
| Line | 1 User Presets | 1 User Presets |
| Area | 10 User Presets | 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below | Above/Between/Below |
| Temperature Accuracy | Object temperature 100°C to 2000°C (212°F to 3632°F), ±2% for ambient temperature 18°C to 25°C (64.4°F to 77°F) and ±3% for ambient temperature 25°C to 50°C (64.4°F to 77°F) | Object temperature 100°C to 2000°C (212°F to 3632°F), ±2% for ambient temperature 18°C to 25°C (64.4°F to 77°F) and ±3% for ambient temperature 25°C to 50°C (64.4°F to 77°F) |
| General | ||
| Power Consumption | 4W Max | 4W Max |
| Protection Level | IP67 | IP67 |
| Weight | Approx. 1133.3 g (2.5 lb) | Approx. 1133.3 g (2.5 lb) |
| Power Supply | 10-30 VDC | 10-30 VDC |
| Working Temperature/Humidity | -0 °C to 60 °C (-32 °F to 140 °F) 90% or less |
-20 °C to 50 °C (-4 °F to 122 °F) 90% or less |
| Dimensions | φ41mm × 256.2mm(φ1.61" × 10.1") | φ41mm × 256.2mm(φ1.61" × 10.1") |
| Menu Language | English | English |
| Thermographic Integration | ||
| Temperature Metadata | Continuous output data of preset thermographic rules and measured temperature | Continuous output data of preset thermographic rules and measured temperature |
| Thermographic Data Encoding | 50 fps, 32-bit 384 × 288 per frame | 50 fps, 32-bit 640 × 512 per frame |
| Thermographic Data Upload | Real-time full-screen thermographic data matrix (16-bit or 32-bit 384 × 288) via RTSP, ISAPI, and SDK | Real-time full-screen thermographic data matrix (16-bit or 32-bit 640 × 512) via RTSP, ISAPI, and SDK |
| Raw Data Upload | Real-time full-screen YUV data via RTSP and SDK | Real-time full-screen YUV data via RTSP and SDK |
| Video and Image | ||
| Main Stream | 50 fps ( 1280×720, 704×576, 640×512, 352×288, 384×288 ) | 50 fps ( 1280×720, 704×576, 640×512, 352×288, 384×288 ) |
| Video Compression | H.265/H.264/MJPEG | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Spela, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Spela, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Network | ||
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP |
| Simultaneous Live View | Up to 3 channels | Up to 3 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering | User authentication (ID and PW), HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | HIKMICRO Studio | HIKMICRO Studio |
| Interface | ||
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| Alarm Input | 1, alarm input (0-3.3 VDC) | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NC, level quantity | 1, alarm output; NC, level quantity |
| Analog Output | 1, CVBS output | 1, CVBS output |
