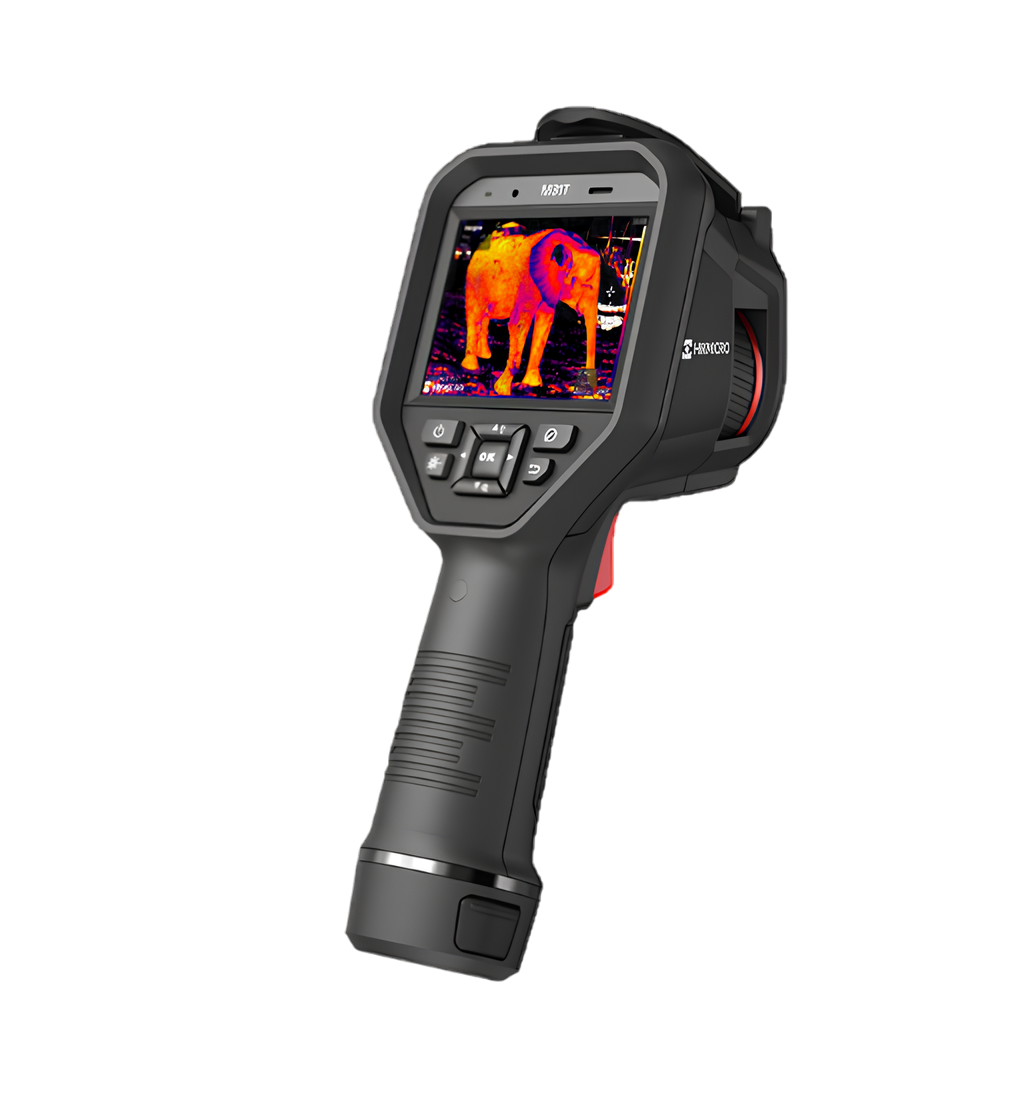

HIKMICRO M31T Handheld Thermography Camera

SKU: HM-TP23-7QF/W-M31T
$4,099.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

NEW! The M31T is specifically designed for measuring the temperature of living skin surfaces. Equipped with a 384×288 resolution and advanced calibration algorithms, it can rapidly identify temperature anomalies in dynamic environments.

The HIKMICRO M31T handheld thermal imaging camera is engineered for high-precision temperature monitoring within critical ranges. Equipped with a 384×288 resolution, advanced calibration algorithms, it enables rapid identification of temperature anomalies in dynamic environments. With real-time temperature tracking at ±0.5°C accuracy (ambient temperature: 5°C–40°C), the device supports informed decision-making and enhances safety.

 Features

  • High sensitivity thermal module with 384 x 288 resolution
  • Supports multiple palettes
  • High quality optical module with 8 MP resolution
  • Bi-spectrum image fusion, picture-in-picture preview
  • Wide temperature measurement range: 5℃~40℃
  • High temperature measurement accuracy: Max (±0.5°C), for the ambient temp. 15°C to 35°C
  • 640 x 480 resolution 3.5'' LCD touch display
  • LED light supplement makes the device a torch in required scenarios
  • Supports 1.0x to 8.0x continuous digital zoom

Specification

Infrared Image
IR Resolution 384 x 288 (110,592 pixels)
SuperIR 768 x 576 (442,368 pixels)
NETD < 35 mK (@ 25  °C, F#=1.0)
Image Frequency 30Hz
Detector Pitch 12  μm
Spectral Range 7.5 to 14  μm
Focal Length 6.4mm
F-number F1.0
Field of View (FOV) 41.1°×30.5°
Spatial Resolution (IFOV) 1.87 mrad
Min. Focus Distance 0.1 m (0.32ft)
Focus Mode Manual Focus
Image Display
Visual Camera 3264  ×  2448 (8 MP)
Display 640  ×  480 Resolution, 3.5" LCD Touch Screen
Screen Brightness Manual
Digital Zoom 1.0x to 8.0x continuous
Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Focus Mode Palette Above/Below/Interval
Color Alarm Above/Below/Interval
Image Modes Thermal/Visual/Fusion/PIP/Blending
Measurement and Analysis
Object Temperature Range Range 5℃  to 40℃(41°F to 104°F)
Accuracy Max (±0.5°C), for the ambient temp. 15°C to 35°C
Measurement Tools Center Spot, Hot Spot, Cold Spot
User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles
Level and Span Mode Auto/Manual/1-Tap Touch-screen
Data Storage and Communication
Image Storage Capacity Approx. 100,000 Images (8MP)
Annotations Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note;
Picture note; Tag note; Sketch;
Video Storage Capacity MP4 video max. 400h;
Radiometric video max. 50h
Video File Format MP4 video
and radiometric video
Extendable Memory Card Extendable 64 GB Micro SD Card
General
Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth Bluetooth 4.2
USB Interface USB Type-C
LED Light Yes
Laser Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
Battery Type Interchangeable and rechargeable Li-ion battery
Battery Operating Time Approx. 4 hours
Battery Charging Time Approx. 4 hours fully charged
Power Saving Mode Yes
Protection Level IP54
Drop Test Height 2 m (6.56 ft)
Safety IEC 61010-1
EMC EN 301489-1,    EN 301489-17,    EN IEC 61000-6-2,    EN IEC 61000-6-3,EN
61326-1
Vibration 2g, IEC 60068-2-6
Shock 25g, IEC 60068-2-27
Warranty 3 years for the full product, 10 years for the detector, and 2 years for the battery.
Working Temperature Range 5°C to 40°C (41°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Relative Humidity < 95% non-condensing
Weight Approx. 720g (1.59 lb)
Dimension 244  ×  100  ×  104 mm (9.6  ×  3.9  ×  4.1 in)
Tripod Mounting UNC  ¼”-20

Includes

  • M31T camera
  • Wrist strap
  • Interchangeable Battery x2
  • 64GB Micro SD Card
  • Charging Base with Adaptor and Plugs (UK/US/AU/EU)
  • 2-in-1 USB-C to USBCA Cable
  • Hard Carrying Case
  • Calibration Certificate
  • Quick Start Guide
