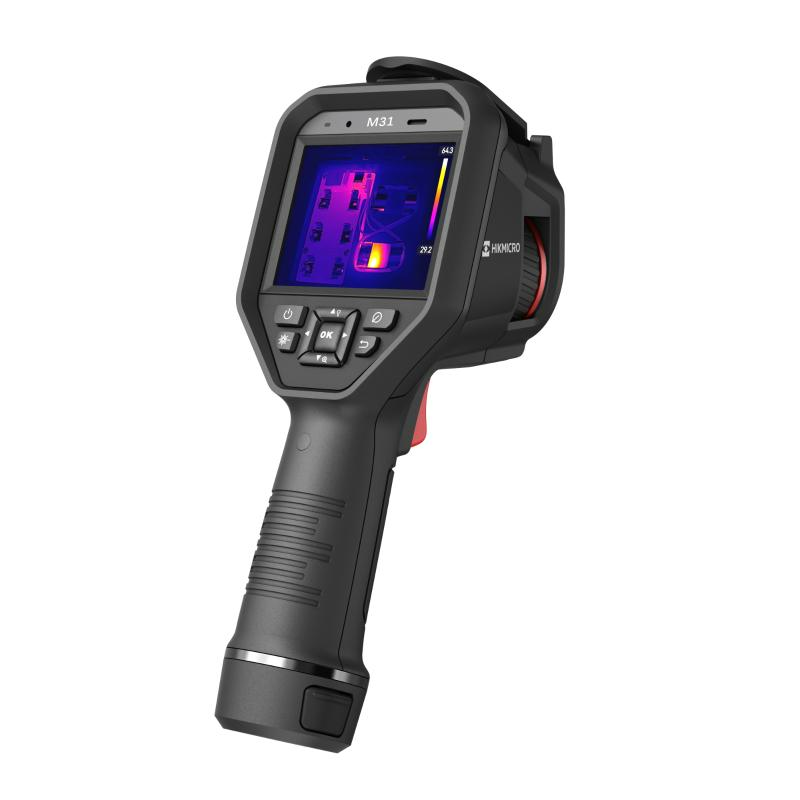

HIKMICRO M31 Handheld Thermal Camera

SKU: HM-TP23-7QF/W-M31
$3,919.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

HIKMICRO M31 handheld camera is specially designed for temperature measurement. It’s equipped with a 384 x 288 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.

KEY FEATURE

  • High sensitivity thermal module with 384 x 288 resolution
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Supports multiple palettes
  • High quality optical module with 8 MP resolution
  • Bi-spectrum image fusion, picture-in-picture preview
  • Wide temperature measurement range: -20°C ~650°C
  • High temperature measurement accuracy: Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
  • 640 x 480 resolution 3.5'' LCD touch display
  • Long-distance laser light supplement for thermography targets
  • LED light supplement makes the device a torch in required scenarios
  • Supports 1.0x to 8.0x continuous digital zoom
Infrared Image
IR Resolution 384 x 288 (110,592 pixels)
SuperIR 768 x 576 (442,368 pixels)
NETD < 35 mK (@ 25  °C, F#=1.0)
Image Frequency 30Hz
Detector Pitch 12  μm
Spectral Range 7.5 to 14  μm
Focal Length 6.4mm
F-number F1.0
Field of View (FOV) 41.1°×30.5°
Spatial Resolution (IFOV) 1.87 mrad
Min. Focus Distance 0.1 m (0.32ft)
Focus Mode Manual Focus
Image Display
Visual Camera 3264  ×  2448 (8 MP)
Display 640  ×  480 Resolution, 3.5" LCD Touch Screen
Screen Brightness Manual
Digital Zoom 1.0x to 8.0x continuous
Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red,
Condensation Alarm
Focus Mode Palette Above/Below/Interval
Color Alarm Above/Below/Interval/Insulation
Image Modes Thermal/Visual/Fusion/PIP/Blending
Measurement and Analysis
Object Temperature Range Range -20°C to 150°C-4°F to 302°F)
Range 0°C to 650°C
32°F to 1202°F
Accuracy Max (±2°C/3.6°F,  ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and
object temp. above 0
°C (32°F)
Measurement Tools Center Spot, Hot Spot, Cold Spot
User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles
Level and Span Mode Auto/Manual/1-Tap Touch-screen
SuperScene+ Electrical Panel, PCB Inspection
Data Storage and Communication
Image Storage Capacity Approx. 100,000 Images (8MP)
Annotations Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note;
Picture noteTag note; Sketch;
Video Storage Capacity MP4 video max. 400h;
Radiometric video max. 50h
Video File Format MP4 video and radiometric video
Radiometric Infrared-Video
Streaming (Compressed)
Over UVC, Wi-Fi

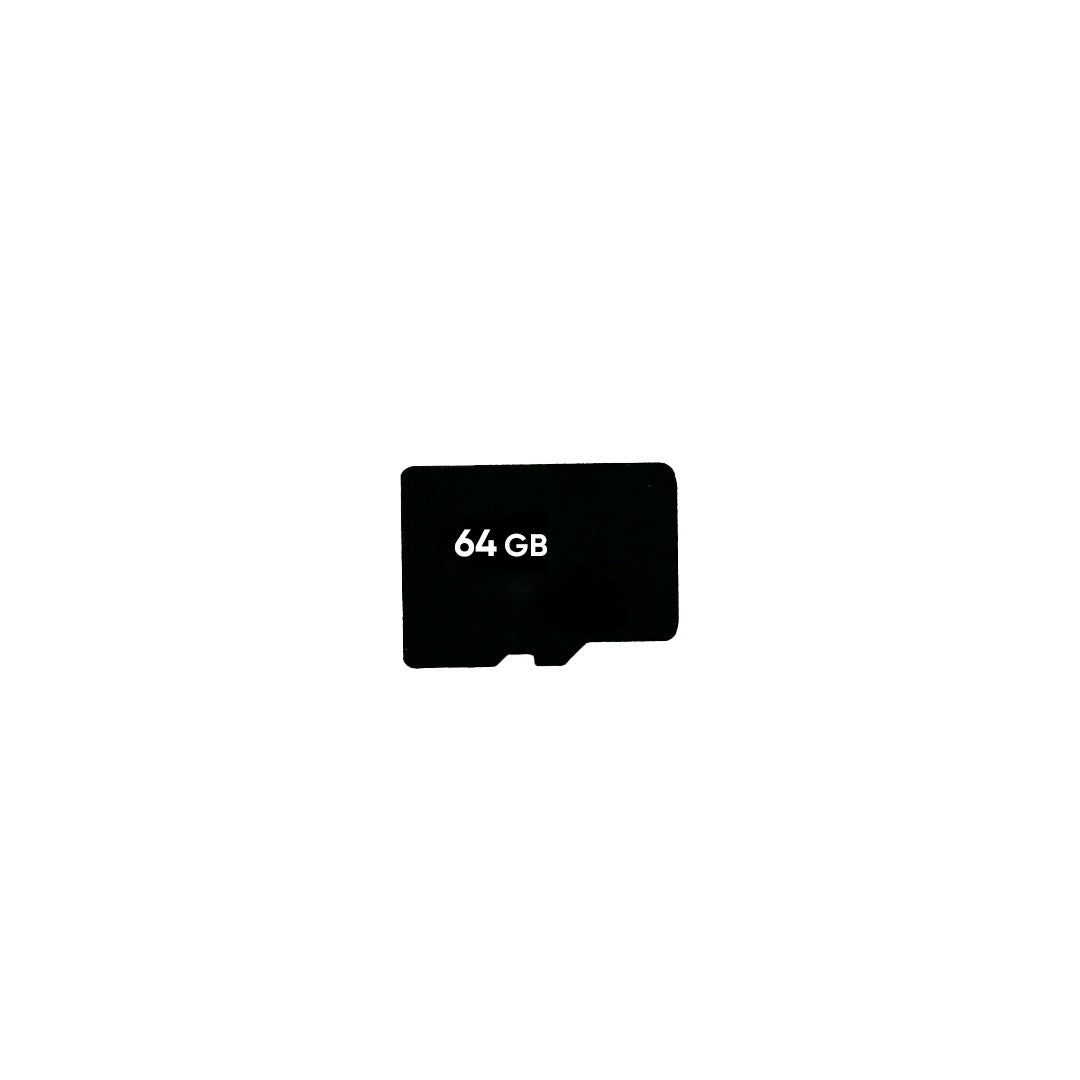

Extendable Memory Card Extendable 64 GB Micro SD Card
General
Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth Bluetooth 4.2

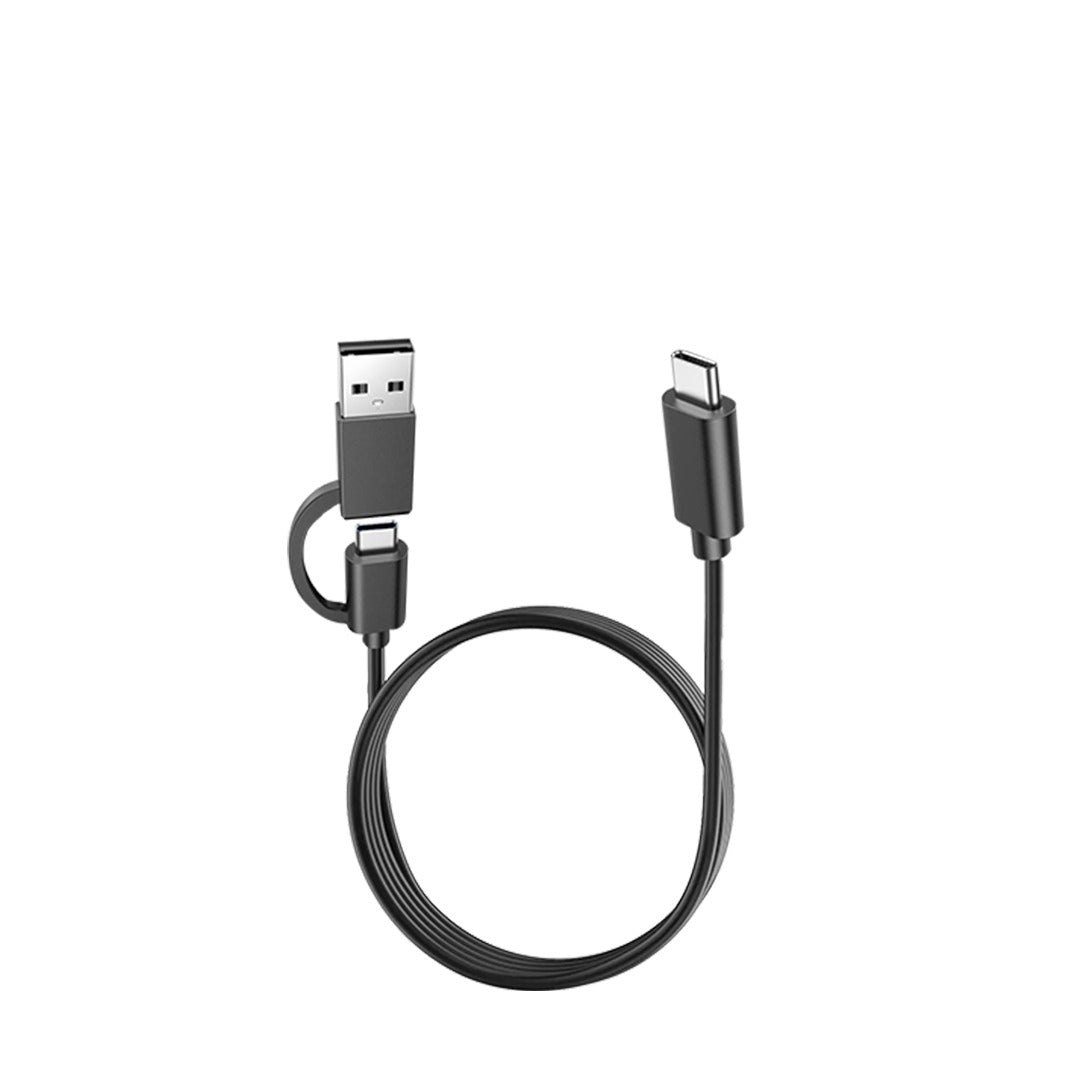

USB Interface USB Type-C
LED Light Yes
Laser Yes, Class II, Wavelength: 635 nm; Power: < 1 mW

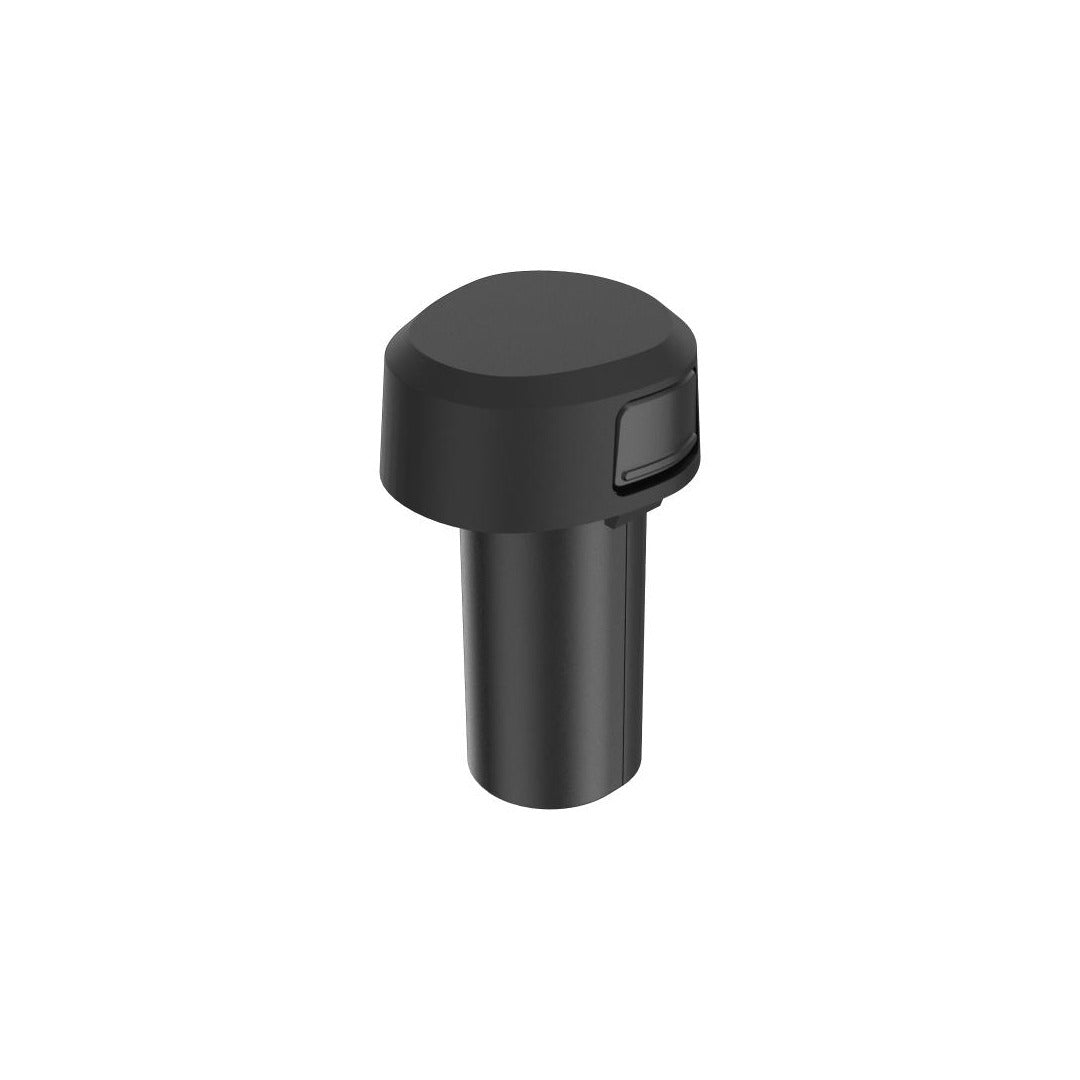

Battery Type Interchangeable and rechargeable Li-ion battery
Battery Operating Time Approx. 4 hours
Battery Charging Time Approx. 4 hours fully charged
Power Saving Mode Yes
Protection Level IP54
Drop Test Height 2 m (6.56 ft)
Safety IEC 61010-1
EMC EN 301489-1,    EN 301489-17,    EN IEC 61000-6-2,    EN IEC 61000-6-3EN
61326-1
Vibration 2 g, IEC 60068-2-6
Warranty 3 years for the full product, 10 years for the detector, and 2 years for the
battery.
Shock 25 g, IEC 60068-2-27
Working Temperature Range -20°C to 50°C (-4°F to 122°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Relative Humidity < 95% non-condensing
Weight Approx. 720g (1.59 lb)
Dimension 244  ×  100  ×  104 mm (9.6  ×  3.9  ×  4.1 in)
Tripod Mounting UNC  ¼”-20
