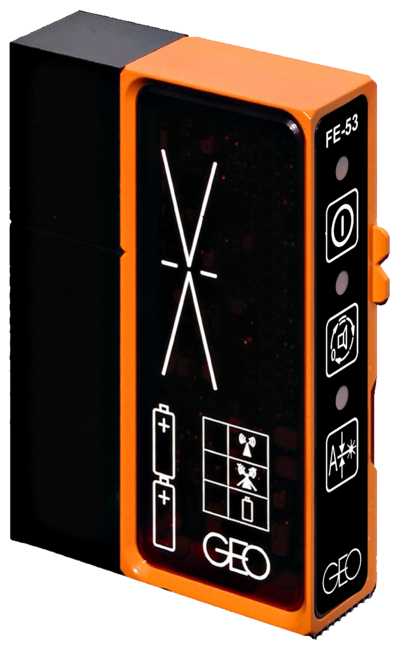

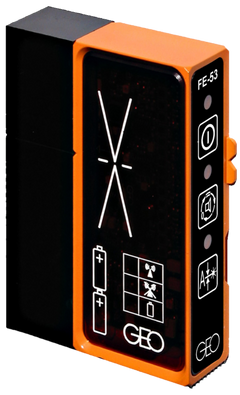

FE-53 Radio locking receiver for Y axis with battery and rod clamp

PRODUCT OVERVIEW

Automatic search, finding and locking of the alignment (direction).

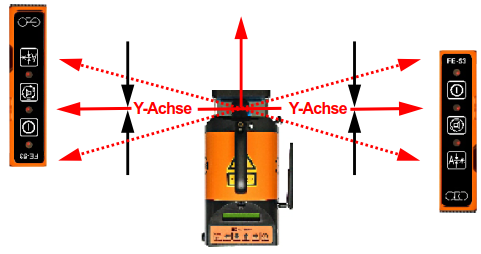

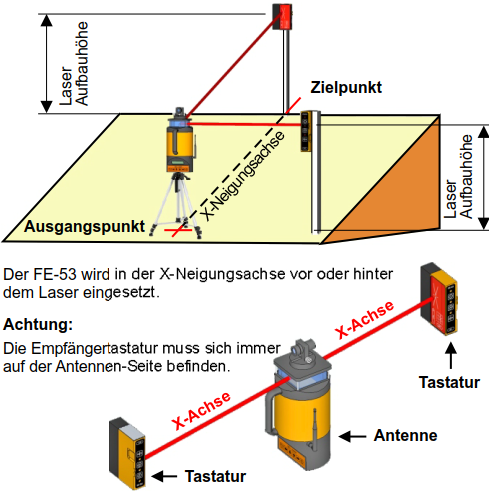

Laser and receiver correspond via radio circuit. By pressing the corresponding button at laser or at receiver the laser starts to search for the receiver. As soon as the rotating laser beam hits the receiver, it is directed to the centre and fixed there.
Accuracy: to ± 1 mm/100 m

Please note: The serial numbers of laser and FE-53 must be the same. Simultaneous operation of FE-53, FE-61 and FB-10 is not possible.

Long range
Range with RL-79L up to 500 m, with NL-9V, NL-9, NL-8 up to 350 m, with PL-95L up to 100 m.



SPECIFICATIONS

Operating time up to 20 hours
Power supply 2 x mignoncell/AA (rechargeable or non rechargeable)
Waterproof yes
Dimensions 140 x 100 x 32 mm
Weight 0.52 kg
Guarantee 24 month
Rotor speed 300 - 800 rpm
Current consumption approx. 100 mA
Housing watertight, except battery compartment
Working distance 2 - 200 m depending on which laser is used
Frequency range 2.4 Ghz ISM band
Transmitting power < 100 mW (EIRP)
Reception area 85 mm / > 100°
Accuracy measuring receiver ± 1 mm or ± 0.1 mm
Accuracy direction automatic up to ± 1 mm/100 m
Distance to lamps and powerlines > 1.5 m




Download Brochure
