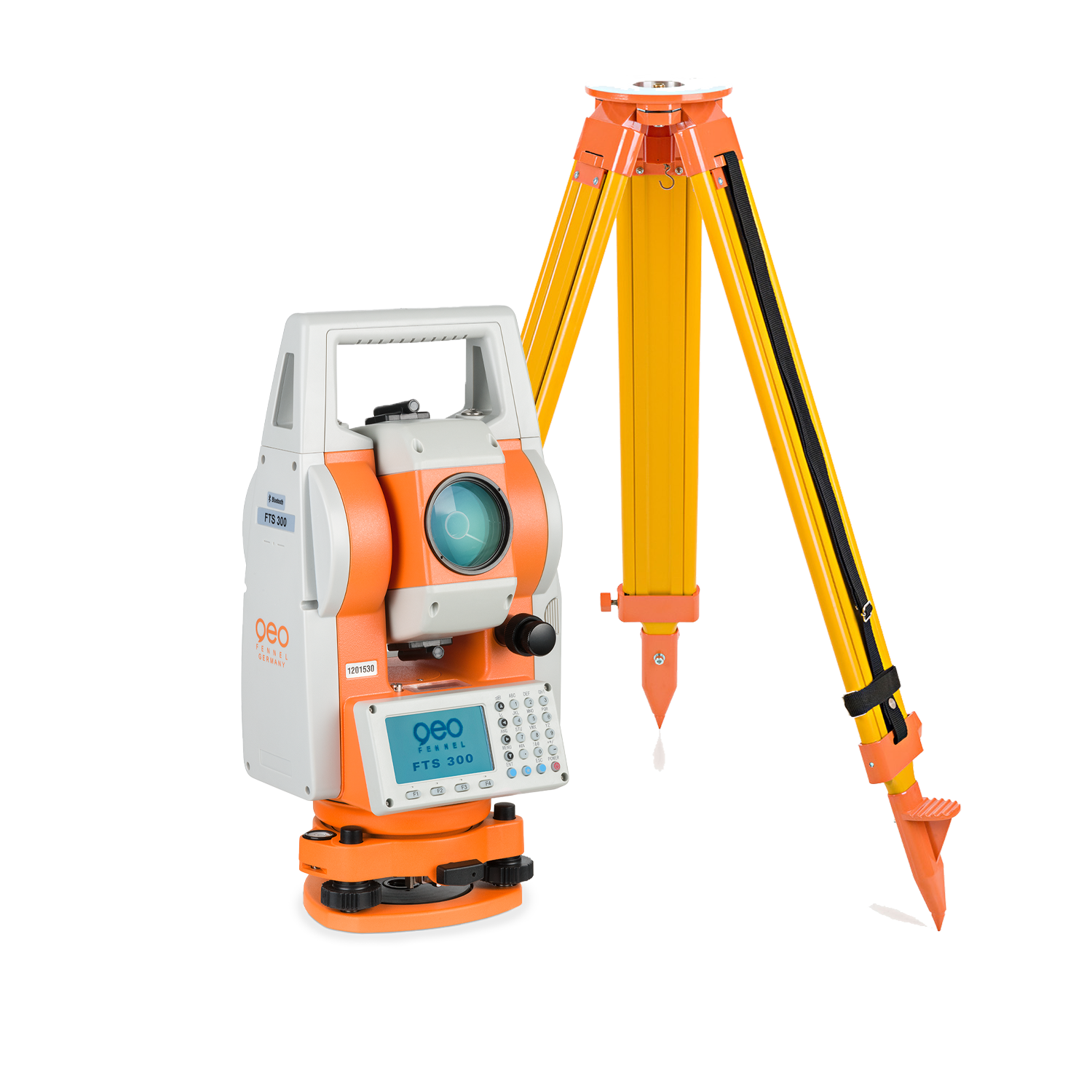

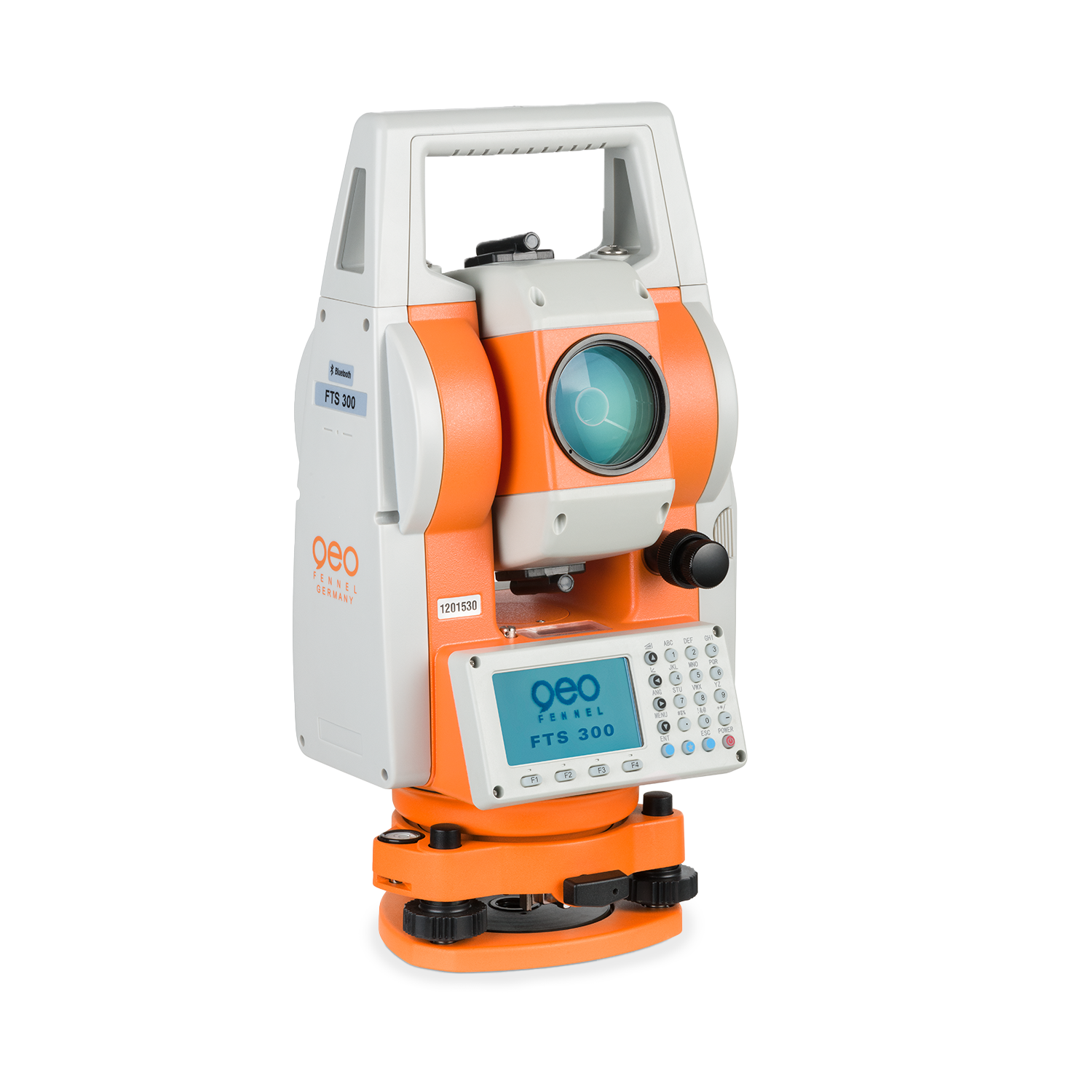

geo-FENNEL Total Station FTS 300-BT with Software and FS 24-M W/S
NOW WITH BLUETOOTH!
The geo-FENNEL Total station FTS 300 is an innovative solution with reflectorless distance measuring module with a range of over 600 m (with reflector up to over 5,000 m). Equipped with an electronic bubble level, FTS 300 offers an exceptionally powerful, cost-effective solution for a wide range of general and specialised applications in construction and engineering.
Integrated and comprehensive software package
Choice of applications
- Construction & engineering surveying
- Stake-out
- Point-to-line
- Height determination
- Free stationing
- Indirect height measurement
- Roads
- Area determination
- Right-angle coordinates, polar coordinatesPoint-to-point
| Laser class: |
2 |
| Dust / water protection: |
IP 56 |
| Extended size: |
190 x 210 x 350 mm |
| Temperature range: |
-20°C to 55°C |
| Operating time: |
2 x 6 h |
| Visible laser beam: |
± 1.5 mm / 1.5 m |
| Accuracy: |
+/- 2mm + 2ppm (working range), 2" (angle measurement) |
| Working range: |
1,5 - 600 m (Reflective tape target), 1,5 - 600 m (Reflectorless), 1,5 - 5000 m (Single standard prism) |
| Resolving Power: |
3" |
| Field of View: |
1°30' |
| Power supply: |
NiMH |
| Plate level: |
30" / 2 mm |
| Range: |
± 3° |
| Axis: |
2 |
| Angle units: |
100 % / 360° / 400 gon |
| Minimum reading resolution: |
1'' / 5'' |
| Image: |
Erect |
| Shortest focussing distance: |
1,5 m |
| Telescope magnification: |
30 x |
| Objective diameter: |
45 mm |
| Circular bubble: |
8' / 2 mm |
| Weight: |
6,5 kg |
Features
- Easy-to-use on-board software

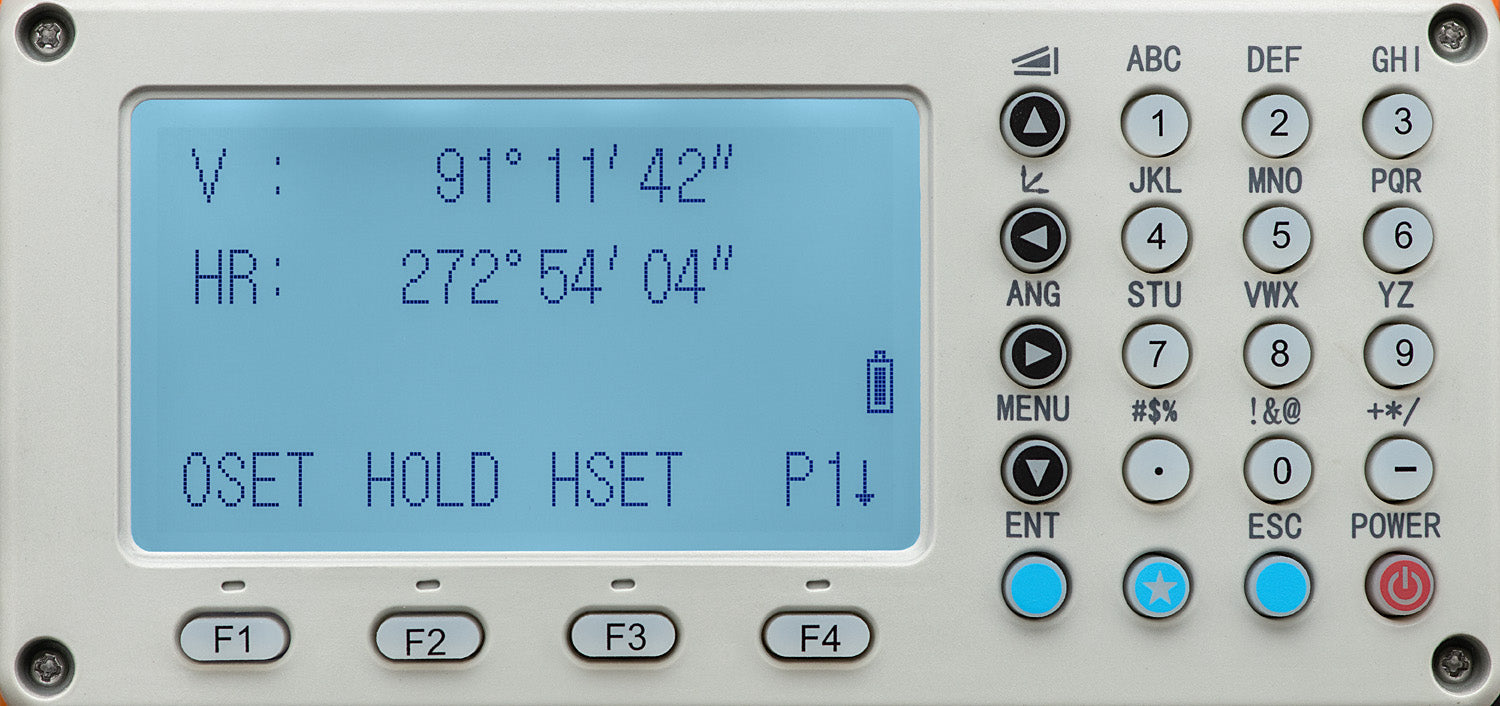

- Easy to read display also by direct sunlight
- Fast import and export of different data formats without an additional software
- Fast and accurate measurements
- Intensity of the laser plummet can be changed gradually
- Compact and smart design

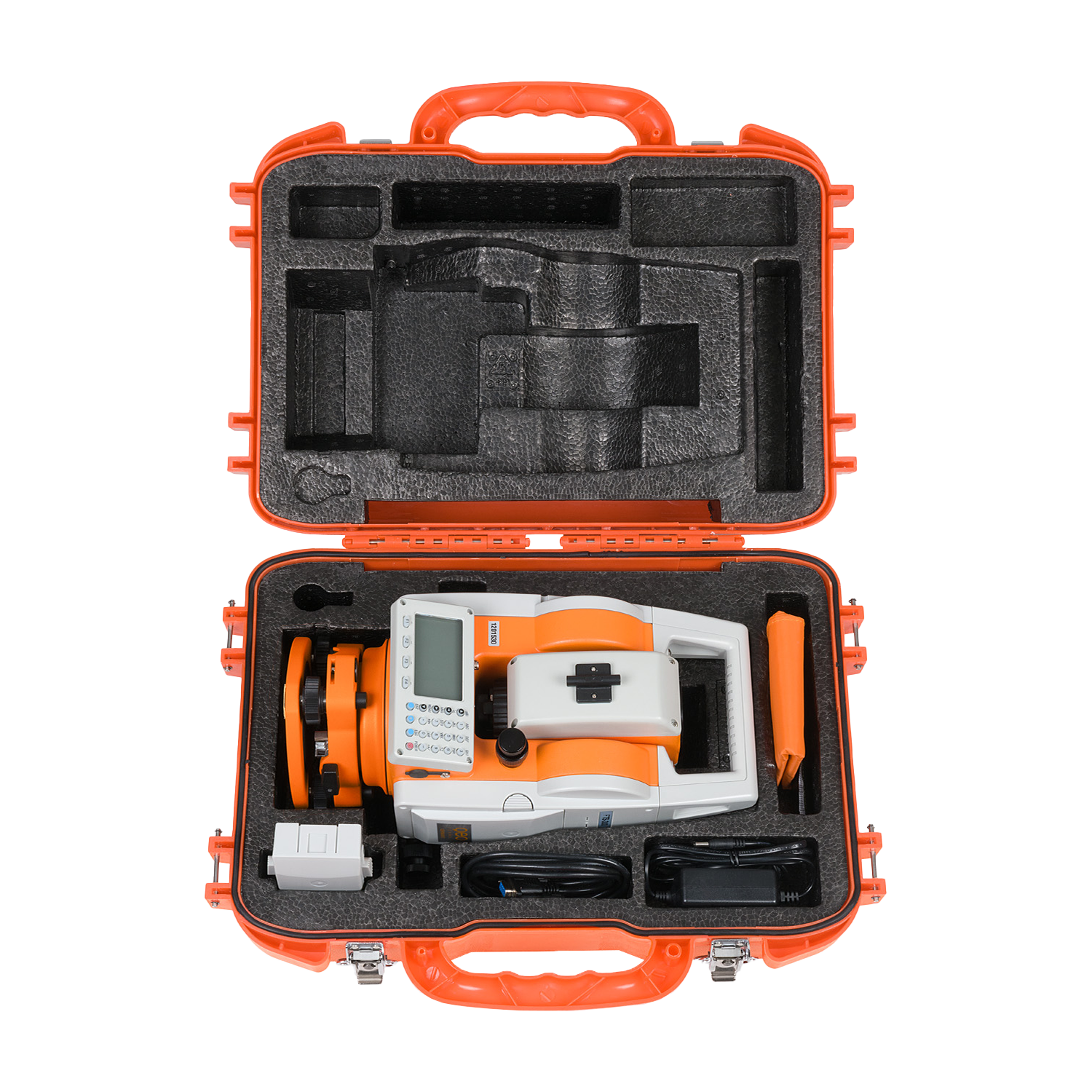

Included in scope delivery:
