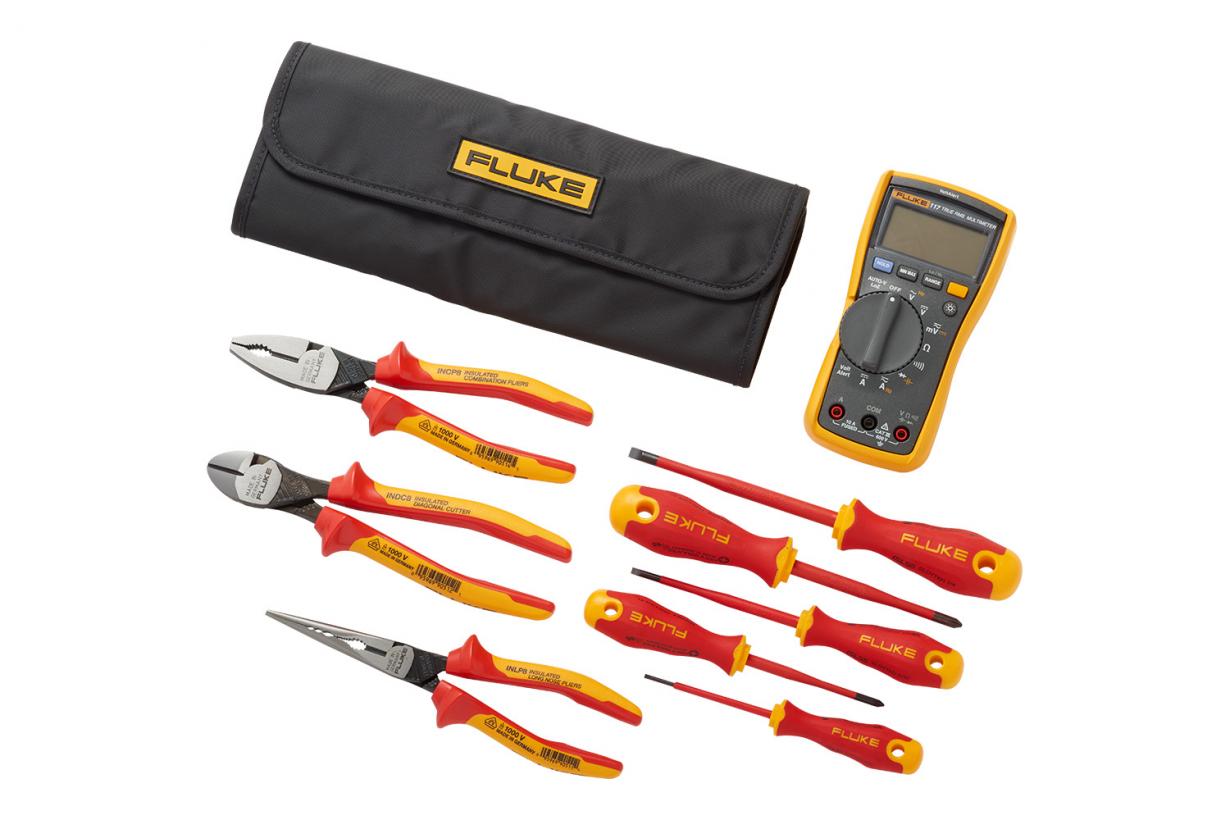

Fluke IB117K 117 Multimeter + Insulated Hand Tools Starter Kit in Roll-up Tool Pouch

SKU: 5067428

$882.00

Need more info? Call us +61 8 9335 1718

Price Match International Orders Tax Removed

6Great reasons to buy from us:

30 Days Return
If your product is faulty or damaged under manufacture warranty, simply send it back to us and we'll cheerfully replace it or fix the problem for you.
Returns are Easy
Simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Best Price Guarantee
In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing hands-down.
We guarantee your satisfaction
We insist that you love everything you buy from us. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again.
100% Safe & Secure
Ordering from Laserman Technologies is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either.
Best Laser Warranties in the Business
Laserman the Best Laser Level, Pipe Laser and Laser Measuring Warranties in the Business - Now thats unbeatable value !!.

(item no. 5067428)

Product Overview

Ideal for electricians and technicians that are looking to gather min/max/average readings, measure frequency, and capacitance. This package includes the 117 digital multimeter, 5 x insulated screwdrivers, 3 x insulated pliers and a roll-up pouch.

The Fluke 117 Digital Multimeter is a true-rms meter with integrated non-contact voltage detection to help get the job done faster. With Auto Volts and LoZ functions that help prevent false readings caused by ghost voltage, the Fluke 117 is a great choice for electricians. The Fluke 117 provides Min/Max/Average readings and measures frequency and capacitance.

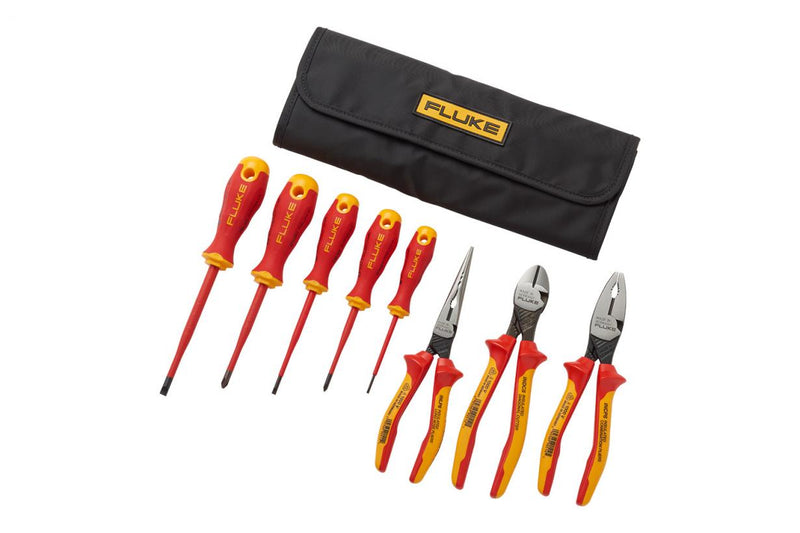

The insulated hand tools starter kit has three sizes of slot screwdrivers. #1 and #2 Phillips screwdrivers. Long nose pliers, heavy duty diagonal cutters and heavy duty lineman combination pliers. All made from hardened chromium-molybdenum-vanadium (CMV) steel. All certified to 1000 volts AC and 1500V DC. All with a limited lifetime warranty.

Key features

Fluke 117 Electrician's Multimeter
3 slotted insulated screwdrivers
2 Phillips insulated screwdrivers
3 insulated pliers
Roll-up tool pouch

Fluke 117 Electrician's Multimeter

Accurate, easy-to-use multimeter with integrated VoltAlert™ technology for non-contact voltage detection
Features AutoVolt automatic AC/DC voltage selection
Provides low input impedance to help prevent false readings due to ghost voltage
Presents a large white LED backlight for working in poorly lit areas
Features True RMS capabilities for accurate measurements on non-linear loads

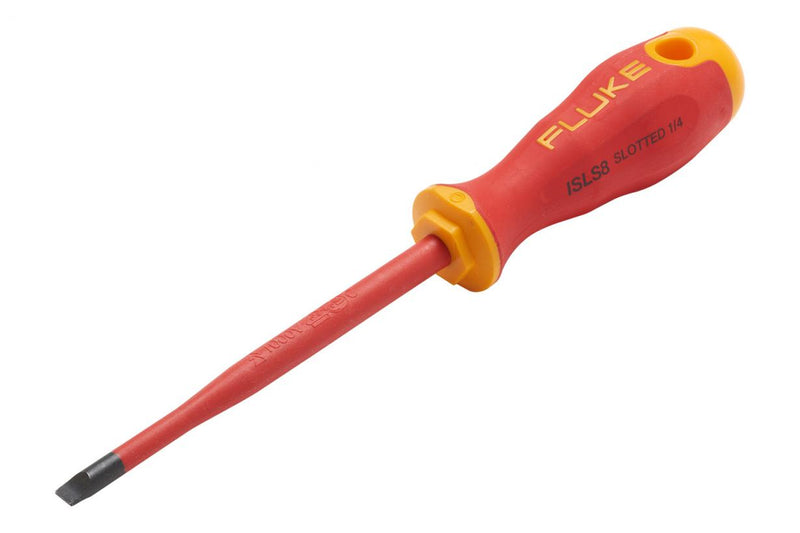

Slotted screwdrivers

Three different bladeforms
Three handle lengths

Phillips screwdrivers

#1 and #2 tips
Two handle lengths

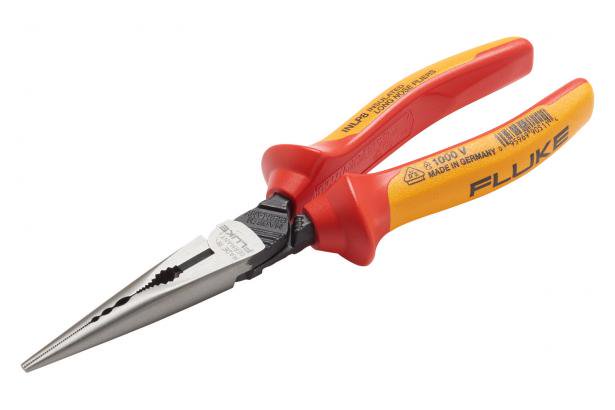

Long nose pliers with side cutter and gripping zones

Unique milled wave pattern gripping zones
4 gripping points for pulling round objects with superior grip that won't slip
Straight, half-round, long and slim knurled jaws, specially profiled
Side cutting edge for wire cutting

Heavy duty, high leverage diagonal cutter

Cuts hard materials including steel and piano wire
Power joint and precision cutting edges

Heavy Duty Combination Pliers

Secure hold by aggressive serrated jaws and 4-point gripping hole
Slim shape for better access to wires in tight spaces
Powerful gripping jaw, yet 20% lighter weight than other designs

Specifications: Fluke 117 Electrician's Multimeter plus insulated hand tools starter kit

Fluke 117 Electrician's Multimeter Specifications:

Maximum voltage between any terminal and earth ground	600 V
Surge protection	6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
Fuse for A input	11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +60°C
Battery type	9 volt Alkaline, NEDA 1604A / IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy Specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
DC millivolts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V
DC volts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
Auto volts	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts^¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
AC millivolts^¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts^¹ True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
AC volts^¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Continuity	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
Diode test	Range/resolution	2.00 V / 0.001 V
Diode test	Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/resolution	> 1000 μF
	Accuracy	5% + 20%
Lo-Z capacitance	Range	1 nF to 500 μF
Lo-Z capacitance	Accuracy	10% + 2 typical
AC amps True RMS (45 Hz to 500 Hz)	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
AC amps True RMS (45 Hz to 500 Hz)	Accuracy	1.5% + 3 20 A continuous overload for 30 seconds max
DC amps	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
DC amps	Accuracy	1.0% + 3 20 A continuous overload for 30 seconds max
Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz
Hz (V or A input)²	Accuracy	0.1% + 2
All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical and General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	3 years

Screwdriver Type	Blade length (inches mm)	Handle length (inches mm)	Handle width (inches mm)	Bladeform diameter (inches mm)
Slot	3 75	3-3/8 86	1 25	3/32 2.55
Slot	4 100	3-11/16 94	1 5/16 30	5/32 4.0
Slot	5 125	4-3/16 106	1 7/16 36	1/4 6.0
Phillips #1	3 80	3-11/16 94	1 3/16 30	7/32 5
Phillips #2	4 100	4-3/16 106	1 7/16 36	1/4 6

Pliers Type	Nominal Length (inches)	Nominal Length (mm)
Long Nose	8	200
Diagonal Cutters	8	200
Lineman Combination Pliers	8	200

Includes:

Fluke 117 Electrician's Multimeter
ISLS3 Insulated Slotted Screwdriver 3/32, 3"
ISLS5 Insulated Slotted Screwdriver 5/32, 4"
ISLS8 Insulated Slotted Screwdriver 1/4, 5"
IPHS1 Insulated Phillips Screwdriver #1, 3"
IPHS2 Insulated Phillips Screwdriver #2, 4"
INLP8 Insulated Long Nose /w Side Cutter and Gripping Zones
INDC8 Insulated Heavy Duty High Leverage Diagonal Cutter
INCP8 Insulated Heavy Duty Linesman Combination Plier
RUP8 Roll up pouch
