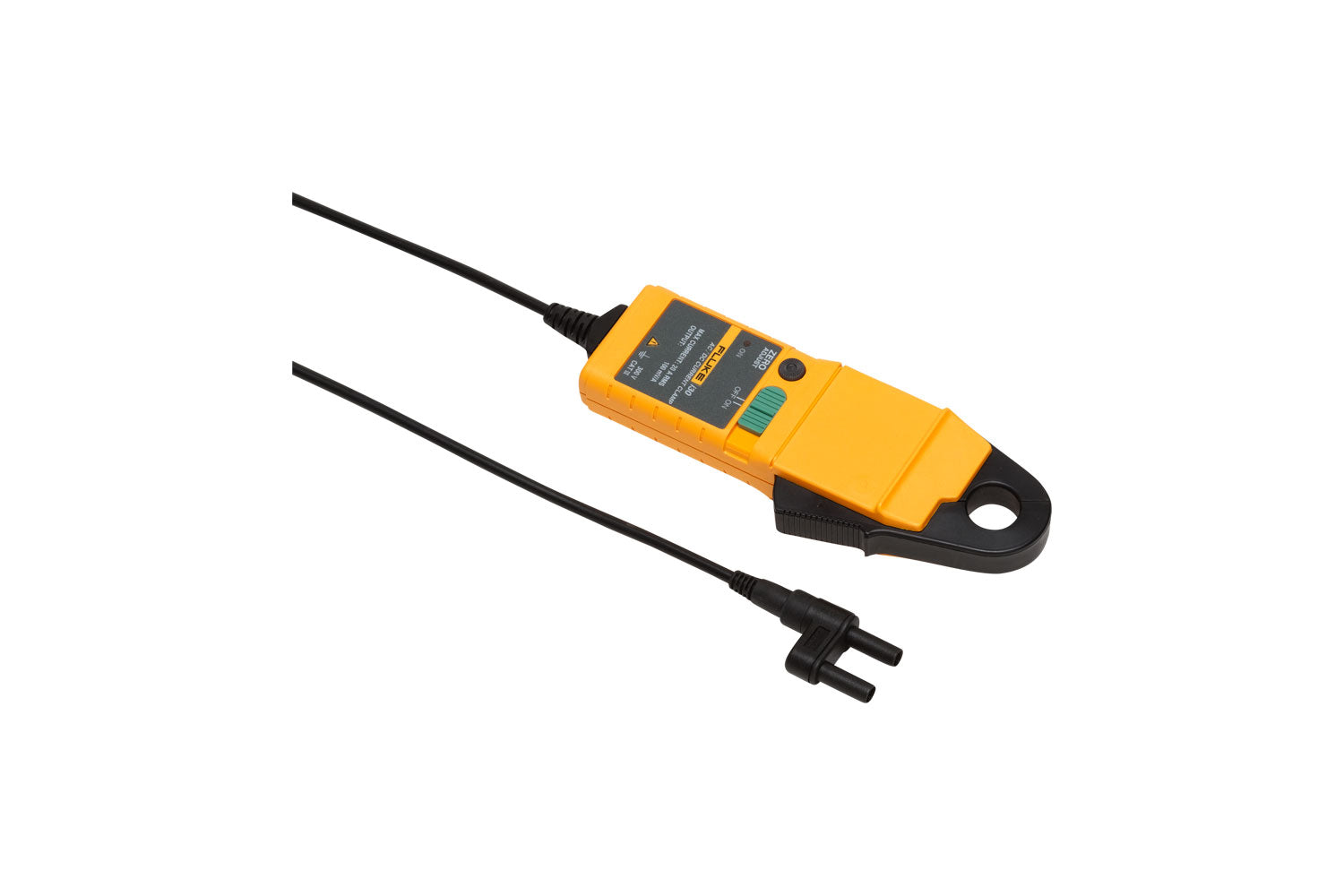

Fluke i30 AC/DC Current Clamp

(item no. 2584935)

Product Overview

The Fluke i30s current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.



Specifications

Electrical specifications
Current range 20 A ac rms or dc
Measuring range ± 30 A
Output sensitivity 100 mV/A
Accuracy (at +25 °C) ± 1 % of reading ± 2 mA
Resolution ± 1 mA
Load impedance > 100 kΩ
Conductor position sensitivity ± 1 % relative to center reading
Frequency range DC to 100 kHz (- 0.5 dB)
Phase shift below 1 kHz < 2 degrees
Temperature coefficient ± 0.01 % of reading/°C
Power supply 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Working voltage (see Safety Standards section) 300 V ac rms or dc



General specifications
Maximum conductor size

19 mm diameter
Output connection

Safety BNC connector, supplied with safety 4 mm adapter
Output zero

Manual adjust via thumbwheel
Cable length

2 meters
Operating temperature range

0 °C to +50 °C
Storage temperature range (with battery removed)

-20 °C to +85 °C
Operating humidity

15 % to 85 % (non-condensing)
Weight

250 g
Safety standards

BS EN 61010-1: 2001

BS EN 61010-2-032: 2002

BS EN 61010-031: 2002

300 Vrms, Category III, Pollution Degree 2

Use of the probe on uninsulated conductors is limited to 300 V acrms or dc and frequencies below 1 kHz.
EMC Standards

EN 61326: 1998 +A1, A2, & A3
