Fluke Calibration P5521 and P5522 Liquid-to-Liquid Separators (item no. 4185715, 4185726)

SKU: 4185715
$7,143.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

(item no. 4185715, 4185726)

  • P5521-For pressures to 10,000 psi (700 bar)
  • P5522-For pressures to 7,000 psi (480 bar) for Skydrol or other aggressive fluids

Product overview

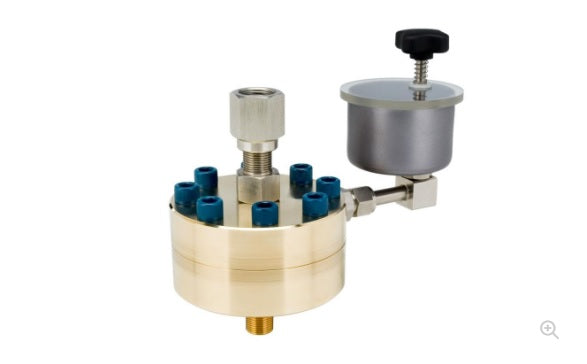

These liquid-to-liquid separators connect directly to the test port of a hydraulic deadweight tester or comparison test pump. A flexible diaphragm separates the fluids, protecting the calibrator from contamination, and allows calibration of the device in its specific working fluid.

Models

P5521 and P5522
5521 and 5522 Liquid to Liquid Separators

Liquid-to-Liquid Separator
Pressure Range 0 to 10,000 psi (700 bar)

Specifications

Specifications
Pressure Range 5521: 0 to 10,000 psi (700 bar)
5522: 0 to 7,000 psi (480 bar) for Skydrol and other aggressive fluids
Instrument Size (W x H) 4 x 6 in (100 x 150 mm)
Instrument Weight 7.5 lb (3.5 kg)
Test Port Adapter Uses adapters supplied with calibrator
Calibrator Connection 3/8 BSP male (mating adapter supplied)
Body Material Aluminum bronze
Diaphragm 5521- Viton® 5522-Ethylene Propylene
Reservoir Material Hard-anodized aluminum

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

(item no. 4185715, 4185726)

  • P5521-For pressures to 10,000 psi (700 bar)
  • P5522-For pressures to 7,000 psi (480 bar) for Skydrol or other aggressive fluids

Product overview

These liquid-to-liquid separators connect directly to the test port of a hydraulic deadweight tester or comparison test pump. A flexible diaphragm separates the fluids, protecting the calibrator from contamination, and allows calibration of the device in its specific working fluid.

Models

P5521 and P5522
5521 and 5522 Liquid to Liquid Separators

Liquid-to-Liquid Separator
Pressure Range 0 to 10,000 psi (700 bar)

Specifications

Specifications
Pressure Range 5521: 0 to 10,000 psi (700 bar)
5522: 0 to 7,000 psi (480 bar) for Skydrol and other aggressive fluids
Instrument Size (W x H) 4 x 6 in (100 x 150 mm)
Instrument Weight 7.5 lb (3.5 kg)
Test Port Adapter Uses adapters supplied with calibrator
Calibrator Connection 3/8 BSP male (mating adapter supplied)
Body Material Aluminum bronze
Diaphragm 5521- Viton® 5522-Ethylene Propylene
Reservoir Material Hard-anodized aluminum
