(item no. 4565487)

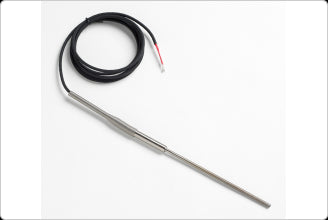

Durable RTDs (PRTs) with temperature range to 420 °C and accuracy to 0.025 °C
- Vibration and shock resistant
- NVLAP-accredited calibration included, lab code 200706-0
When buying a PRT or RTD temperature probe, performance isn’t the only criterion you need to look at. The real issues are price-to-accuracy and price-to-durability ratios.
5627A probes have a temperature range up to 420 °C and an accuracy as good as ± 0.025 °C. They come in three different lengths. (Both six- and nine-inch models cover –200 °C to 300 °C.) Each precision thermometer is shipped with its ITS-90 coefficients and a calibration table in 1 °C increments.
One of the best features of this RTD sensor is that it conforms to the standard 385 curve, letting you use your DIN/IEC RTD meters fully. Why use a precision thermometer or RTD temperature probe that’s less accurate than your meter?
The 5627A is manufactured using a coil suspension element design for increased shock and vibration resistance. It has a mineral-insulated sheath with a minimum bend radius of 19 mm (3/4-inch) for flexibility and durability. (Bend, if any, should be specified at time of order.)
Six- and nine-inch 5627A precision thermometers are calibrated at –196 °C, –38 °C, 0 °C, 200 °C, and 300 °C. For 12-inch versions of these precision thermometers, the point at 300 °C is replaced by a calibration point at 420 °C.
Each probe is individually calibrated and includes a NVLAP-accredited report of calibration from the manufacturer, lab code 200706-0.
This RTD temperature probe is an excellent value for a precision thermometer. It has the price-to-accuracy and price-to-durability ratios you should demand in all of the precision thermometers you buy!
Specifications |
|
| Resistance | Nominal 100 Ω |
| Temperature Coefficient | 0.00385 Ω/Ω/ °C nominal |
| Temperature Range | −200 °C to 420 °C (5627A-6 and 5627A-9 to 300 °C; transition and cable temperature: 0 °C to 150 °C) |
| Drift Rate (k=2) | ± 0.04 °C at 0 °C after 100 hours at 420 °C |
| Sheath Material | 316 Stainless Steel |
| Leads | PTFE-insulated, nickel-plated stranded copper, 22 AWG |
| Termination | Specify. See Ordering Information. |
| Time Constant | Four seconds maximum for 63.2 % response to step change in water moving at 3 fps. |
| Bending Radius | Sheath may be ordered with a bend on a minimum radius of 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip. (Fluke lab requires 20 cm [8 in] of unbent sheath to re-calibrate.) |
| Calibration | Includes manufacturer's NVLAP-accredited (lab code 200706-0) calibration and table with R vs. T values in 1 °C increments from -196 °C to 500 °C (to 300 °C for 5627A-6 and 5627A-9). ITS-90 coefficients included. |
| Immersion | At least 100 mm (4 in) recommended |
| Calibrated Accuracy† (k=2) | ± 0.026 °C at -196 °C ± 0.046 °C at 0 °C ± 0.077 °C at 200 °C ± 0.124 °C at 420 °C |
| Size |
5627A-12: 305 mm x 6.35 mm (12 in x 1/4 in) 5627A-9: 229 mm x 4.7 mm (9 in x 3/16 in) 5627A-6: 152 mm x 4.7 mm (6 in x 3/16 in) |
| †Includes calibration uncertainty and 100 hr drift. | |
| Accessory | Description |
|---|---|
| 2601 |
Probe Carrying Case, Plastic |
| 2609 |
Probe Carrying Case, Plastic (for probes 635 mm [25 in] in length) |
| Product Manuals |
|---|
 5627A Platinum Resistance Thermometer User’s Guide (English) (111.79 KB) |
| Application Notes |
|---|
| On-Demand Webinars |
|---|
| Overcoming Drift: Tips to Maintaining Your PRTs |
