(item no. 3477293)
Product Overview

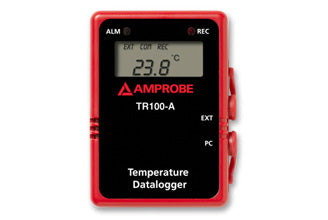

Amprobe’s Model TR100-A takes temperature reading in a compact size unit. Use the included Amprobe software for recording measurements to your personal computer. Set up these parameters for recording: sample interval timing, start/stop, date and time, hi/lo alarm threshold, unit selection, and number of memory points.
Features
- Instrument for indoor air quality monitoring
- Wall mountable
- Digital display
- Air Temperature displays in Celsius/Fahrenheit is selectable
- Offers visible LEDs warnings to monitor IAQ condition
- Small size design with RS232 interface.
- Memory points selection : 1000, 2000, 4000, 8000, 12000,16000
- Includes RS232 Cable, Download Suite Software CD, User Manual and Battery
- IP65 rated for dust and moisture
Specifications
| Dual display LCD |
- |
- |
• |
| Air temperature reading |
-40 °F → 185 °F (-40 °C → 85 °C) |
-40 °F → 185 °F (-40 °C → 85 °C) |
-4 °F → 158 °F (-20 °C → 70 °C) |
| Temperature accuracy |
+/- 1 °F (+/- 0.6 °C) |
+/- 1 °F (+/- 0.6 °C) |
+/- 1 °F (+/- 0.6 °C) |
| RH reading |
- |
0.0 to 99.9 % |
0 to 100 % |
| RH accuracy |
- |
+/- 3 % at 77 °F (25 °C) |
+/- 3 % from 10 - 90 % |
| Recording |
16 k |
16 k |
16 k |
| Dew point reading |
- |
- |
• |
| On screen programmable |
- |
- |
• |
| Software programmable |
• |
• |
• |
| Specifications |
| Display: |
3¾ digit liquid crystal display (LCD) with a maximum reading of 1999 |
| Sampling points: |
1K / 2K / 4K / 8K / 12K / 16K |
| Resolution: |
Temperature 0.1°C / 0.1°F |
| LED: |
Red: Hi, LO Alarm; Yellow: Record |
| Low battery indication: |
The “Batt is displayed when the battery voltage drops below the operating level |
| Auto power off: |
Approx 10 minutes |
| Operating environment: |
-10°C to 60°C (14°F to 140°F), 0 to 100 %RH |
| Storage temperature: |
-40°C to 85°C (-40°F to 185°F), 0 to 100 %RH |
| Measurement ranges: |
Internal sensor -40°C to 85°C (-40°F to 185°F) |
| Measurement ranges: |
External probe -40°C to 100°C (-40°F to 212°F) |
| Model Name |
Description |
| TR100-A |
- Instrument for indoor air quality monitoring
- Wall mountable
- Digital display
- Air Temperature displays in Celsius/Fahrenheit is selectable
Included Accessories: Batteries (installed), users manual, PC software CD and USB cable
|
Download
Product Manual
