- CAT III 1000V and CAT IV 600V
- True RMS
- Ø42mm Clamp Size
- Measures AC and DC current up to 1000 Amps
- Measures AC/DC voltage to 1000V
- Measures Power Factor
- AC/DC Power to 240kW
- Measures Total Harmonic Distortion
- Resistance to 40MΩ
- Frequency measurement to 50kHz

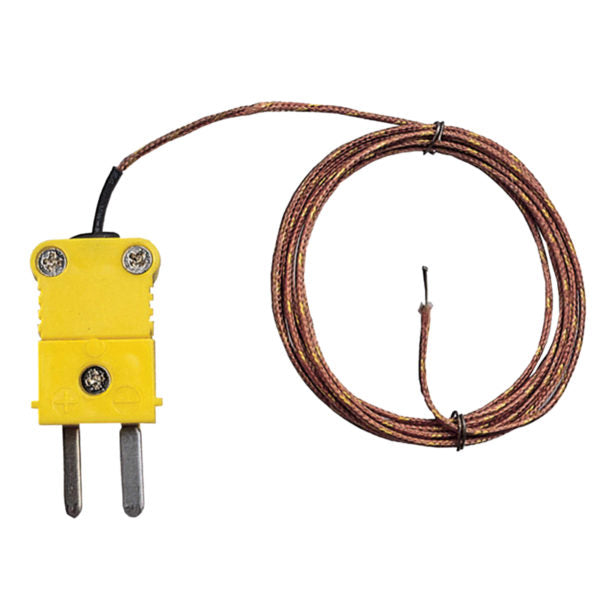

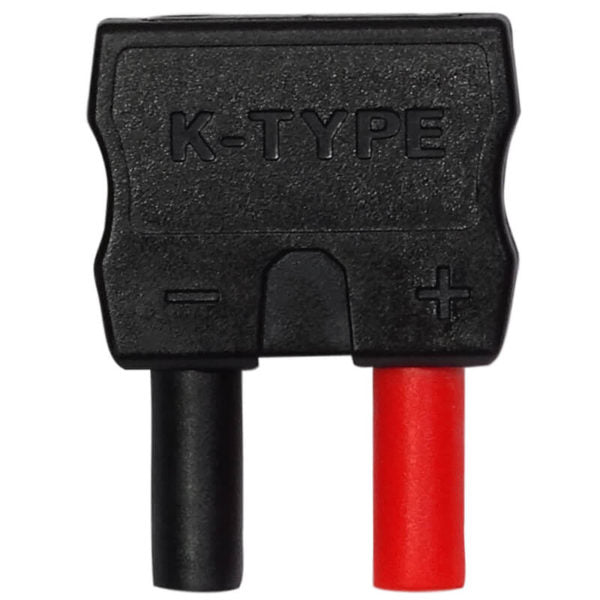

- -50°C to 1000°C Temperature Measurement
- Duty cycle test
- Bluetooth 4.0 BLE
- Data Hold
- Microprocessor DC zero
- Large LCD display with white LED back light
- Diode Test and Continuity Buzzer
- Auto Power Off
- Data Logger

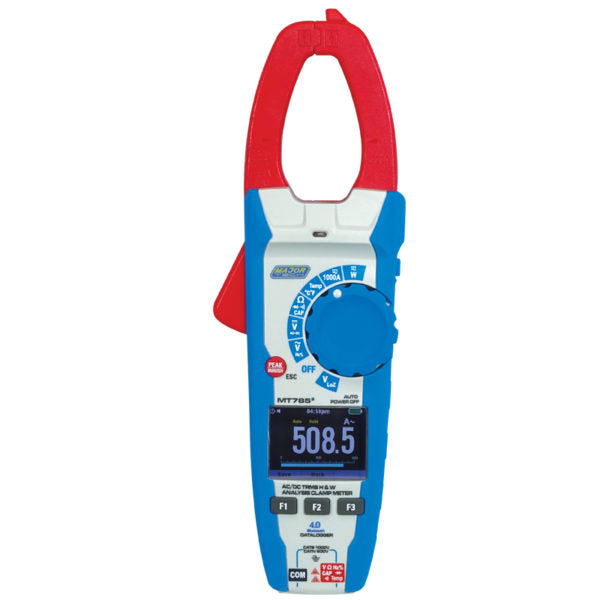

The MT785 is a True RMS AC and DC watt clamp on meter with Bluetooth. This meter provides save, noninvasive measurements of up to 240kW. The light weight, portable, battery powered clamp meter measures the most common ACV, DCV, ACA, DCA and Resistance needed to trouble shoot residential and small commercial electrical systems. The readings are displayed on a 4000 count LCD display and the meter has a back light ideal for use in dimly lit areas. The MT785 is housed in a double injection rubber casing.
Specifications
| Function | Range | Resolution | Accuracy |
| DC Current | 60A – 1000A | 10mA | ±(2.5% + 5 Digits) |
| AC Current | 60A – 1000A | 10mA | ±(2.5% + 8 Digits) |
| DC Voltage | 600.0mV – 1000V | 1mV | ±(1.2% + 3 Digits) |
| AC Voltage | 6.000V – 1000V | 1mV | ±(1.2% + 5 Digits) |
| Resistance | 600.0Ω – 60.00MΩ | 0.1Ω | ±(1.5% + 2 Digits) |
| Frequency | 20Hz – 10kHz | 0.1Hz | ±(0.5% + 3 Digits) |
| Capacitance | 6.000μF – 6000μF | 1pF | ±(5% + 30 Digits) |
| Temperature | -50 to 1000°C | 0.1°C | ±(5.0% + 3°C Digits) |
| Duty Cycle | 0.5 to 99.0% | 0.001 | ±(1.2% + 2 Digits) |
| Total Harmonic Distortion AC A/AC V | 0.999 | 0.001 | ±(3% + 10 Digits) |
| Total Harmonic Distortion Measurement | 0.999 | 0.001 | |
| Total Harmonic Distortion Accuracy H01-H12 | ±(10% +10) | ||
| Total Harmonic Distortion Accuracy H13-H25 | ±(5% +10) | ||
| Active Power | 599.9KW | A.error x V.reading+ V.error x A.reading | |
| Power Factor | -1.0-0.0-1.0 | ±(3% + 1 Digit) | |
| Phase Angle | 0° – 90° | ||
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 50Hz to 60Hz | ||
| Digital Display | 6000 | ||
| Bargraph | Yes | ||
| Bluetooth | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Jaw Size | 42mm | ||
| Input Impedance | >10MΩ DCV & VAC | ||
| Low Frequency Input | Yes | ||
| Min Max | Yes | ||
| Peak hold | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Injection moulded case | ||
| Low Battery Indication | Yes | ||
| Battery | 9V | ||
| Weight | 315g | ||
| Dimensions | 230 x 76 x 40mm | ||
Safety Ratings
Includes:

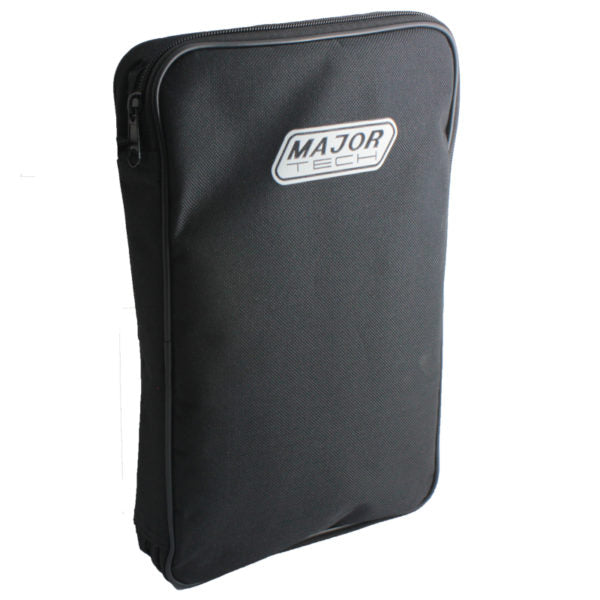

- Carrying Case
- 9V Battery

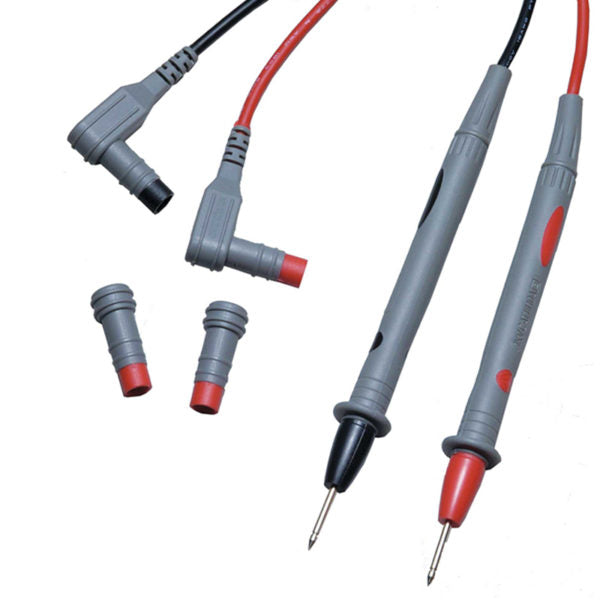

- Test Leads
- Instruction Manual
