Fluke Amprobe ACD-14 TRMS-PLUS Hvac Digital Clamp-on Mulitmeter

SKU: 3086910
$603.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

(item no. 3086910)

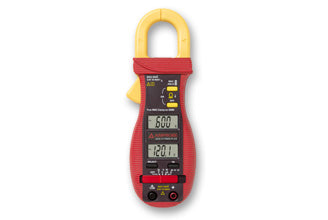

The Amprobe ACD-14 TRMS-PLUS Digital Clamp Multimeter is the perfect choice for HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance, frequency and true-rms accuracy. This digital clamp multimeter provides added functionality with a dual display for views of amperage and voltage simultaneously.

Features

  • Dual displays – permits simultaneous reading of amperage and voltage
  • True-rms for precise measurement results
  • New thin jaws, 5mm thinner than others to access tight measurement spaces
  • Micro Amps measurement for testing flame sensors
  • Capacitance to 3000 µF
  • Temperature with K-type thermocouple probe
  • AC and DC Voltage to 600V
  • Resistance to 40MΩ
  • AC Current to 600A
  • Frequency measurement
  • Diode test and continuity buzzer
  • Hold and maximum reading functions
  • In rush current
  • Accommodates conductors up to 28 mm (1.1) in diameter
  • Auto ranging
  • Auto power off and low battery indication
  • Rubber over-molded case

Specifications

FEATURE ACD-14 PLUS ACD-14 TRMS-PLUS
True-rms
AC Voltage 4.000 V, 40.00 V, 400.0 V, 600 V
DC Voltage 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
AC Current 40.00 A, 400.0 A, 600 A
Resistance 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
Capacitance 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
Frequency 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads
Temperature -4 °F → 999 °F (-20 °C → 537 °C)
Dual displays
Micro amps
Accommodates conductors up to 1.0 (25 mm) in diameter
Specifications
Display: 3-3/4 digits 4000 counts, dual LCD displays
Update rate: 3 per second nominal
Polarity: Automatic
Operating temperature: 0°C to 40°C (32°F to 104°F)
Power supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032



Download

  • Product Manual
  • Shipping This Item Ships from Fremantle, Perth, Western Australia
    Please allow 2 - 10 days for your order to arrive.

    Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

    Returns are easy.

    simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

    Description

    (item no. 3086910)

    The Amprobe ACD-14 TRMS-PLUS Digital Clamp Multimeter is the perfect choice for HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance, frequency and true-rms accuracy. This digital clamp multimeter provides added functionality with a dual display for views of amperage and voltage simultaneously.

    Features

    • Dual displays – permits simultaneous reading of amperage and voltage
    • True-rms for precise measurement results
    • New thin jaws, 5mm thinner than others to access tight measurement spaces
    • Micro Amps measurement for testing flame sensors
    • Capacitance to 3000 µF
    • Temperature with K-type thermocouple probe
    • AC and DC Voltage to 600V
    • Resistance to 40MΩ
    • AC Current to 600A
    • Frequency measurement
    • Diode test and continuity buzzer
    • Hold and maximum reading functions
    • In rush current
    • Accommodates conductors up to 28 mm (1.1) in diameter
    • Auto ranging
    • Auto power off and low battery indication
    • Rubber over-molded case

    Specifications

    FEATURE ACD-14 PLUS ACD-14 TRMS-PLUS
    True-rms
    AC Voltage 4.000 V, 40.00 V, 400.0 V, 600 V
    DC Voltage 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
    AC Current 40.00 A, 400.0 A, 600 A
    Resistance 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
    Capacitance 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
    Frequency 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads
    Temperature -4 °F → 999 °F (-20 °C → 537 °C)
    Dual displays
    Micro amps
    Accommodates conductors up to 1.0 (25 mm) in diameter
    Specifications
    Display: 3-3/4 digits 4000 counts, dual LCD displays
    Update rate: 3 per second nominal
    Polarity: Automatic
    Operating temperature: 0°C to 40°C (32°F to 104°F)
    Power supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032



    Download

  • Product Manual
