(item no. 2730690)

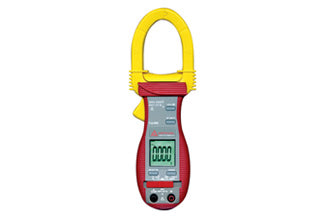

The Amprobe ACD-15 TRMS-PRO offers a wide range of features built into one professional meter. The true-rms version with backlight display, improves performance and reliability.
Features
- True-rms and backlight screen
- Non-contact voltage level detection
- Diode test
- Audible continuity
- Auto-check feature automatically selects DC V, AC V or resistance
- Auto and manual ranging
- Auto power off
- Low battery indication
- Data hold
- Large, easy to read LCD display
- Accommodates conductors up to 1.77 (45mm) in diameter
- Carrying case, test leads, batteries (installed) and manual included
- Voltage overload protection for all functions up to 600V AC/DC
- Measurements: AC/DC voltage up to 600V, AC current up to 2000A, resistance, frequency and capacitance
Specifications
| True-rms |
• |
| AC Current |
400.0 A, 2000 A |
| Voltage AC/DC |
6.000 V, 60.00 V, 600.0 V |
| Resistance |
6.000 kO, 60.00 kO, 600.0 kO, 6.000 MO |
| Continuity |
• |
| Frequency |
10 Hz → 30 kHz |
| Capacitance |
100.0 nF, 1000 nF, 10.00 µF, 100.0 µF, 2000 µF |
| VolTect™ Non-contact voltage |
• |
| Accommodates conductors |
up to 1.77" (45 mm) in diameter |
| Specifications |
| AC Current: |
400.0 / 2000 A |
| AC Current basic accuracy: |
+/-(1.5% Rdg + 5 LSD) @ 50 and 60Hz |
| AC / DC Voltage: |
6.000 / 60.00 / 600V |
| AC / DC Voltage basic accuracy: |
+/-(2.0% Rdg + 5 LSD) @ DC & 50 / 60 Hz** |
| Resistance: |
6.000 /60.00 / 600.0 kOhms 6.000 MOhms |
| Resistance basic accuracy: |
+/-(1.0% Rdg + 4 LSD) @ 60.00 to 600.0 kOhms ranges ** |
| Frequency: |
10Hz to 1kHz |
| Frequency basic accuracy: |
0.5%+4d |
| Capacitance: |
100.0, 1000 nF 10.00, 100.0, 2000 µF |
| Capacitance basic accuracy: |
3.5%+5d |
| Non-contact voltage: |
15V to 85V, 40V to 130V,60V to 210V,90V to 300V,Above 120V |
| True-rms: |
YES |
Download
Product Manual
