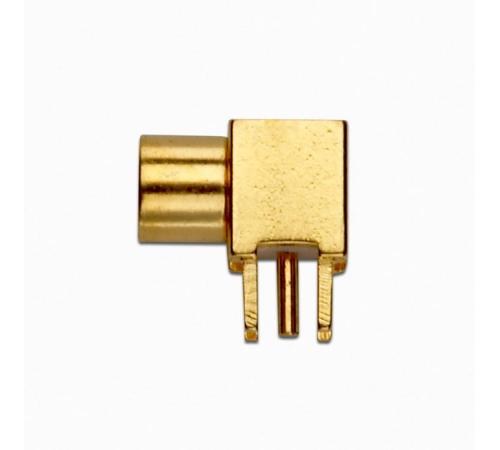

Fluke Pomona 73028 MMCX 50 Ohm Jack, Right-Angle PCB Receptacle (item no. 3094910)

SKU: 73028
$130.00

5 Pack

Checkout Secure
Need more info? Call us +61 8 9335 1718

Sold Per Pack 5pcs

(item no. 3094910)

  • DC - 6 GHz bandwidth
  • 50% smaller than MCX connectors
  • Connectors allow rotation of 360° for layout flexibility
  • Non-slotted contact design for low RF leakage
  • Meets CECC 22340
  • Perfect for applications where space, weight, performance and ease of assembly are required
Model: 730028 Specifications
Impedance 50 Ω
Frequency Range DC - 6 GHz
VSWR 1.25 max.
Working Voltage 170 Vrms max.
Dielectric Withstanding Voltage 500 Vrms
Center/Outer Contact Resistance 10 / 5 mΩ
Number of insertions 500 cycles min.
Insulation resistance > 500 MΩ min.
Temperature Range -65° C to 155° C, -85° F to 329° F

Data Sheets

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

Sold Per Pack 5pcs

(item no. 3094910)

  • DC - 6 GHz bandwidth
  • 50% smaller than MCX connectors
  • Connectors allow rotation of 360° for layout flexibility
  • Non-slotted contact design for low RF leakage
  • Meets CECC 22340
  • Perfect for applications where space, weight, performance and ease of assembly are required
Model: 730028 Specifications
Impedance 50 Ω
Frequency Range DC - 6 GHz
VSWR 1.25 max.
Working Voltage 170 Vrms max.
Dielectric Withstanding Voltage 500 Vrms
Center/Outer Contact Resistance 10 / 5 mΩ
Number of insertions 500 cycles min.
Insulation resistance > 500 MΩ min.
Temperature Range -65° C to 155° C, -85° F to 329° F
