(item no. 2826496)
- With a Cat II, 600 V (CAT III, 300 V) rating, these probes are perfect for use with portable oscilloscopes.
- And with a 500 MHz bandwidth, these probes provide plenty of headroom for those high frequency measurements
- Fully Insulated, Meets IEC 61010-031
- Ergonomic Design with Comfort Grip
- Reference lead with alligator clip for the connection to the 0.2 mm safety socket in the handle
Specifications | |
Bandwidth | 500MHz |
Risetime | 1 ns |
Attenuation | 10:1 |
Input Impedance | 10 M ± 1 % |
Cable Length | 48 in. (122 cm) |
IEC 61010 Rating | 600V CAT II, 300V CAT III frequency-dependant |
Includes | Two of each: Sprung Hook, Ground Lead, Probe Tip Ground |
Switchable | No |
Input Capacitance (pF) | 13 |
Compensation Range (pF) | 10 to 30 |
Readout Actuator | No |
Ground Reference | - |
Vmax (VDC + VAC max) | 300V |
Notes | - |
Manufacturer's Warranty | 90 days |
CE Approved | - |

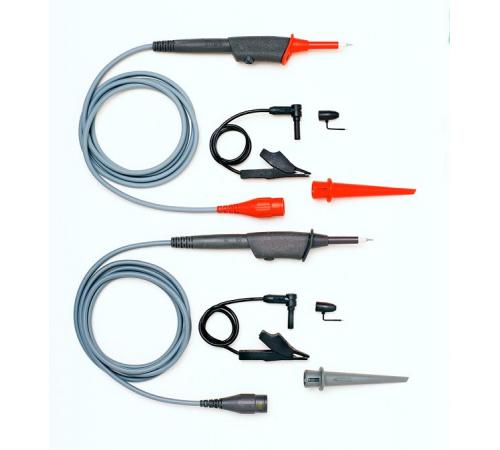

Oscilloscope Probes | 2 Probes: (1) Red and (1) Gray. Each: 500MHz X10, Input 10M ohms, 13pF, Compensation 10-30pF, Rise Time 1ns. |
Interface | - |
Tip/Head Style | - |
RoHS Compliant | Yes |
Datasheet:
