Spectra Precision LR60W Laser Receiver Detector with Radio

SKU: LR60W
$6,600.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

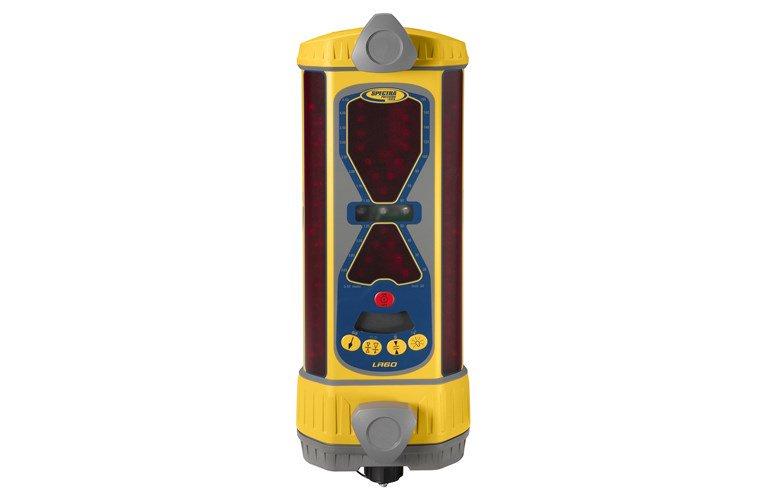

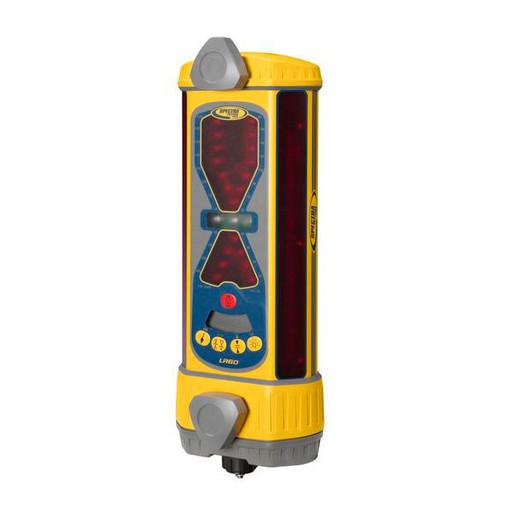

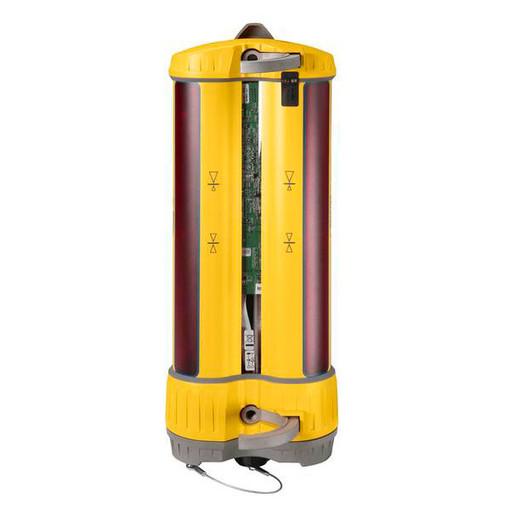

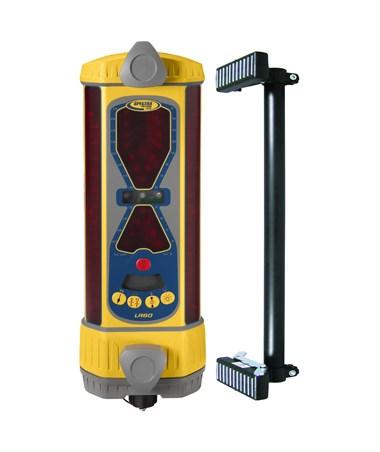

Spectra Precision LR60W Laser Receiver Detector with Radio

Product overview

The Spectra Precision LR60 Laser Machine Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including dozers, excavators, backhoes, scrapers, and box blades. For excavators and backhoes, the LR60 laser receiver features patented Angle Compensation which automatically calculates and corrects the grade display for the angle of the dipper arm. The LR60W is designed to be used with the RD20 Wireless Remote Display.

The easy-to-use LR60 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR60 receiver withstands all weather environments.



Features

  • Check grade with the dipper arm extended or retracted up to 30 degrees
  • Built-in plumb indicator for fast, accurate grade checking for graders
  • Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades
  • Offset on-grade for productive excavation provides additional above grade information for fewer undercuts
  • Up to eight channels of grade information plus directional out-of-beam indicators
  • Four selectable accuracies for each on-grade location

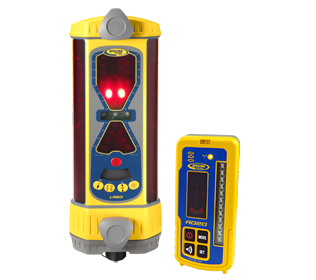

  • LR60W links wirelessly to RD20 in-cab display



Includes:

  • LR60W (wireless)
  • NiMH batteries
  • Charger
  • RD20 and RD20 Machine Power Cable



Specifications

Beam Reception Range 360 degree
 Operating Range Over 460 m (1500 ft) radius, depending on the laser
Laser RPM Minimum: 105; Maximum: 1200
Vertical Reception 222 mm (8.75 in.)
Accuracy: On-Grade Deadbands Grading                    Excavating
Setup 5 mm (0.20 in.)       6 mm (0.25 in.)
Fine 10 mm (0.40 in.)    12 mm (0.50 in.)
Standard 20 mm (0.80 in.)     25 mm (1.0 in.)
Wide 40 mm (1.60 in.)     50 mm (2.0 in.)
ACE—Angle Compensation Mode
Fine 12 mm (0.50 in.)
Standard 25 mm (1.0 in.)
Plumb Swing Range
Standard ± 2.5°
Angle Compensation Mode ± 10° to ± 30°
Display Output Bright, Dim
Automatic Control Capability Yes, with CB20, CB25 & CB30 Control Boxes
Tilt Display Yes with RD20 Remote Display
Power Options Alkaline - 4 x "C" Cell - Standard
Nickel Metal Hydride - 4 x "C" Cell
Power Cable - 10 -30 V dc
LR60 Battery Life - Alkaline 75 hours, Display Dim / 45 hours, Display right
LR60W Battery Life - Alkaline (Continuous in beam) 35 hours, Display Dim / 25 hours, Display Bright
LR60 Battery Life - Ni-MH 50 hours, Display Dim / 40 hours, Display Bright
LR60W Battery Life - Ni-MH (Continuous in beam) 25 hours, Display Dim / 20 hours, Display Bright
Battery Recharge Time 3 - 4 hours
Automatic Shut Off 75 minutes with no laser beam
Out of Beam Indication High and Low
Remote Display Option Yes
Dimensions (LxWxD) 394 x 142 x 149 mm (15.50 in. x 5.58 in. x 5.88 in.)
Mounting Pipe
Round Tube (Outside Diameter) 42 mm to 50 mm (1.66 in. to 2.00 in.)
Square Tube 38 mm (1.50 in.)
Operating Temperature -20 °C to +60 °C (-4 °F to 140 °F)

    Download Brochure
